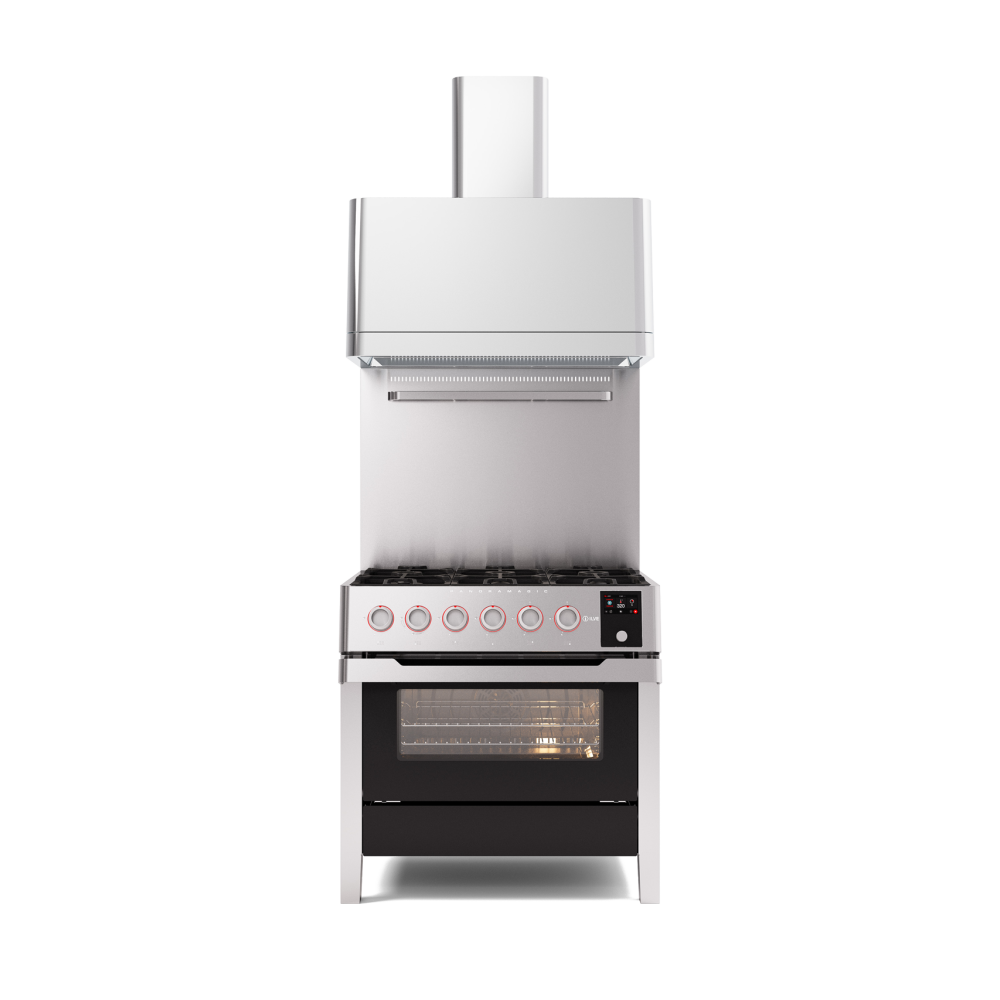

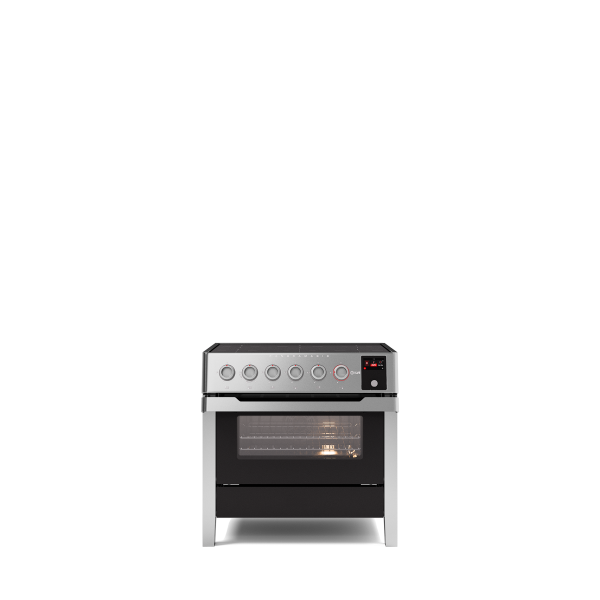

PM09 - 90 cm single oven range cooker

Характеристики

Kolekcja

Panoramagic

Typ produktu

Kuchenki / kuchnie wolnostojące

Źródło danych

Products-Export-2026-May-28-1515.csv | Cavity-Export-2026-May-28-1525.csv | Burners-and-dual-options-Export-2026-May-28-1524.csv | Ranges-induction-Export-2026-May-28-1535.csv | Tech-Icon-Export-2026-May-28-1538.csv | Colours-Export-2026-May-28-1528.csv

Burner - szczegóły

Accensione elettrica integrata nella manopola EN: Yes
Accensione elettrica integrata nella manopola EN: Yes | Categoria bruciatore EN: B002
Accensione elettrica integrata nella manopola EN: Yes | Categoria bruciatore EN: B003
Accensione elettrica integrata nella manopola EN: Yes | Categoria bruciatore EN: B007
Categoria bruciatore EN: B005
Consumi max / min EN: 2 x 3 kW / 0,6 kW
Consumi max / min EN: 3 kW / 0,6 kW
Consumi max / min EN: 3 kW / 0,6 kW + 1,8 kW / 0,4 kW
Consumi max / min EN: 4,3 kW / 1,8 kW
Consumi max / min EN: 5,0 kW / 0,3 kW
Diametro Bruciatore EN: Ø 120 mm
Diametro Bruciatore EN: Ø 90 mm
Diametro Bruciatore EN: Ø 90 mm + Ø 60 mm
Fiamma regolabile in continuo da minimo a massimo EN: Yes
Nome Bruciatore EN: Double burner Fry Top plate
Nome Bruciatore EN: Double ring burner
Nome Bruciatore EN: Double ring dual burner 5 kW
Nome Bruciatore EN: Large burner
Nome Bruciatore EN: Two large burners
Robuste griglie in ghisa EN: Yes
Sovrapprezzo DUAL opzionale EN: 113
Spartifiamma EN: made of brass with nanotechnological non-stick coating
Spartifiamma EN: made of brass with nanotechnological non-stick treatment
Valvola di sicurezza EN: Yes

Cavity - szczegóły

Accensione automatica della luce ad apertura porta EN: Yes
Assorbimento massimo EN: 3,4 kW
Capacità EN: 97 L
Chiusura porta soft-closing EN: Yes
Classe energetica EN: A+
Controllo elettronico della temperatura EN: Yes
Descrizione EN: 80 cm electronic oven
Dimensioni interne EN: 64,5×36,5×41 cm
Funzioni icone EN: F01-F02-F03-F10-F10U-F04-F04U-F05-F06-F07-F07U-F08-F08U-F09-F09U-F12
Funzioni relazioni icone EN: F01|F02|F03|F10|F10U|F04|F04U|F05|F06|F07|F07U|F08|F08U|F09|F09U|F12
Girarrosto EN: diagonale
Grill elettrico EN: 2150 W
Illuminazione EN: Double internal light
Isolamento ad alta densità EN: Yes
Muffola EN: with easy clean enamel
Numero funzioni EN: 16
Porta forno full glass EN: Yes
Programmatore EN: electronic touch TFT
Resistenza circolare EN: 2100 W
Resistenza elettrica inferiore EN: 1350 W
Resistenza elettrica superiore EN: 1200 W
Resistenza grill abattibile EN: Yes
Scarico vapori EN: controlled with dry or moist cooking option
Sicurezza bambini EN: Yes
Sonda di cottura EN: Yes
Temperatura di esercizio EN: 30-320°C
Termostato EN: with electronic probe
Tipo EN: Oven
Ventilazione EN: cooling tangential
Vetri porta EN: Triple glass cold door (EN60335-2-6-11.101)

Colour - szczegóły

Stainless steel: SS (https://www.ilve.com/wp-content/uploads/2020/03/SS_Inox.svg) | Satin: S (https://www.ilve.com/wp-content/uploads/2020/03/S_Satin.svg)

Induction zone - szczegóły

Assorbimento min / max EN: 1,4 kW | Categoria EN: Induction zone
Assorbimento min / max EN: 1,85 kW | Categoria EN: Induction zone
Assorbimento min / max EN: 2,3 kW | Categoria EN: Induction zone
Assorbimento min / max EN: 2,6 kW
Categoria EN: Induction zone
Descrizione EN: A
Descrizione EN: B
Descrizione EN: C
Descrizione EN: D
Diametro EN: Ø 145 mm
Diametro EN: Ø 180 mm
Diametro EN: Ø 210 mm
Diametro EN: Ø 260 mm
Nome EN: Induction zone

Products - Accessori del prodotto IT

KG00201|KG00202|EA2633006000008|KGRFT003|KGSET001|EA4180002000000|EA4053004030006|EA1278001070000|EA6830004000000

Products - Caratteristiche cavità IT

OV 80 E3 TFT S

Products - Caratteristiche generali IT

OV 80 E3 TFT S

Products - Configurazioni IT_image

https://www.ilve.com/wp-content/uploads/2020/05/PM096_Hobs_Tec.svg,https://www.ilve.com/wp-content/uploads/2020/05/PM09F_Hobs_Tec.svg,https://www.ilve.com/wp-content/uploads/2020/05/PMI09_Hobs_Tec.svg

Products - Configurazioni IT_title

6 burners,Fry-Top,Induction

Products - Download Prodotti IT_link

https://drive.google.com/file/d/1qo3lPWKonjCDZEWeAqdDsbC08kNmWgiT/view?usp=drivesdk,https://drive.google.com/file/d/1TtMuqkeSwxEb5wRbnGPx1Ybm-8AA__Ng/view?usp=sharing,https://drive.google.com/file/d/1nCOZg3jl7q1ZfQjdV76QCUcYpAVIw-8n/view?usp=drivesdk

Products - Download Prodotti IT_titolo

User manual,Wiring diagram,TFT Display manual

Products - Finiture IT

Satin

Products - Galleria IT_product_image

https://www.ilve.com/wp-content/uploads/2020/05/PM096DS3_SS_Hood_Gen_Front.png,https://www.ilve.com/wp-content/uploads/2022/05/PMI096S3_SS_Gen_Front.png

Products - Icone tecniche IT

Total Black brass flame spreader with non-stick nanotechnological coating|Highly specialised hobs|Heavy cast iron pan supports|4.3” full touch display|Precise electronic temperature control|Door and drawer with soft-closing system|Steam discharge|Cold doo

Products - Immagine IT

https://www.ilve.com/wp-content/uploads/2020/05/PM096DS3_SS_HOOD_Gen_Front_Thumb.png

Products - Immagini tecniche IT_hobs_tec_image

https://www.ilve.com/wp-content/uploads/2020/05/PM09_Front_Tec.svg,https://www.ilve.com/wp-content/uploads/2020/05/PM_Side_Tec.svg

Products - Immagini tecniche IT_tec_hobs_label

,

Products - Link configuratore IT

https://www.ilumiere.it/ilve/ar/en/PM09.html

Products - Scocca IT

Stainless steel

Products - Source ID

4691

Products - Źródłowe kategorie

Styles>Panoramagic|Technology>Range cookers

Tech icon - szczegóły

Total Black brass flame spreader with non-stick nanotechnological coating: Total Black brass flame spreader with non-stick nanotechnological coating | Highly specialised hobs: Highly specialised hobs | Heavy cast iron pan supports: Heavy cast iron pan sup

Спеціальні артикули

MPN

PM09
